Serial Attached SCSI (SAS) is a high-speed data storage interface designed for high-throughput and Fast data access

Intended primarily for data storage centers the SAS interface is backwards compatible with SATA

This 1 meter long cable uses 28 AWG wires and is intended for external use

Specification:

Specification:

serial Attached SCSI (SAS) is a high-speed data storage interface designed for high-throughput and fast data access. Intended primarily for data storage centers the SAS interface is backwards compatible with SATA.

This allows the user to mix more expensive lower-capacity SAS drives for applications that require faster data access and higher reliability With lower-cost higher-capacity SATA drives for applications with lower access speed requirements.

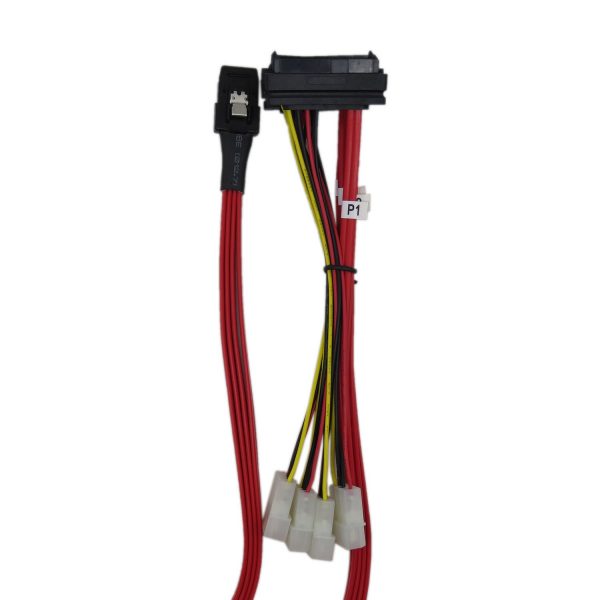

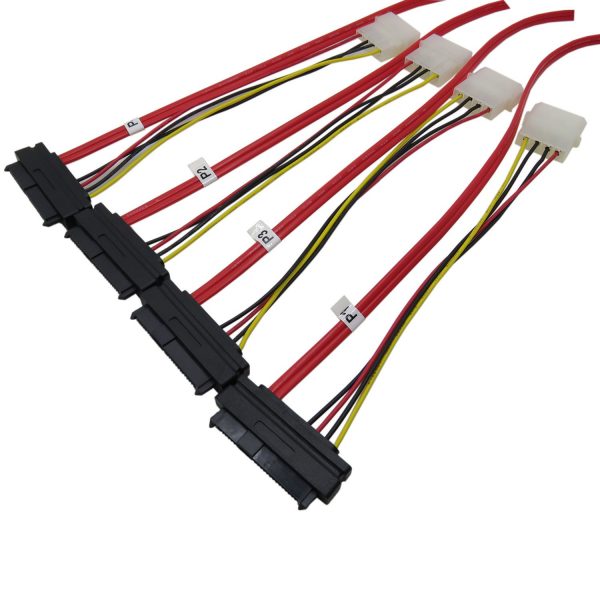

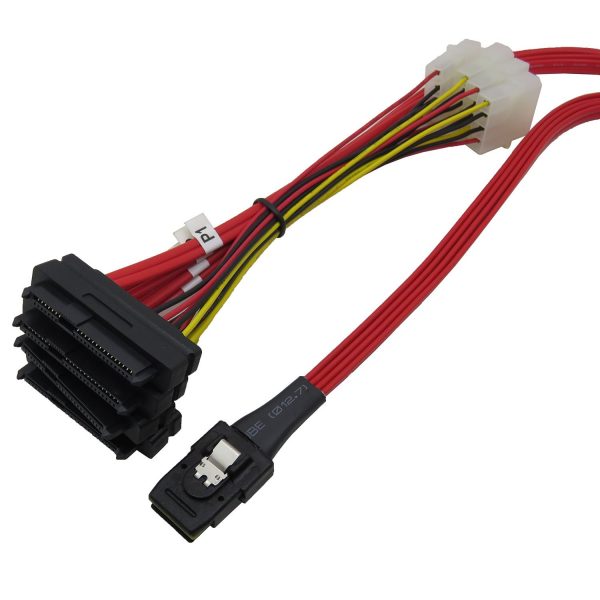

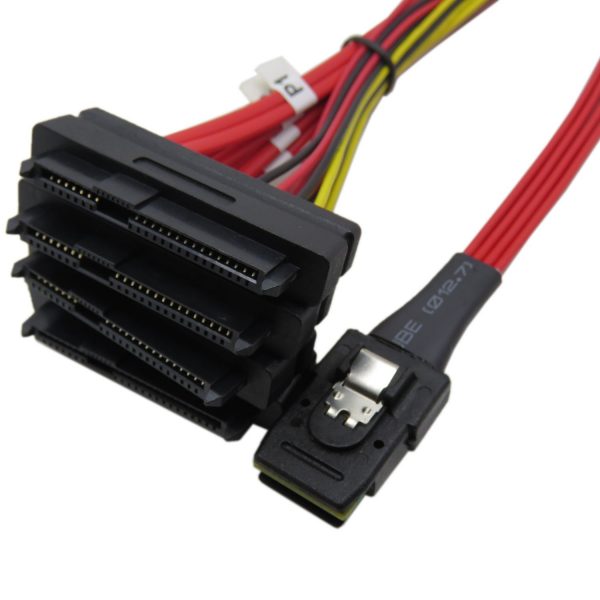

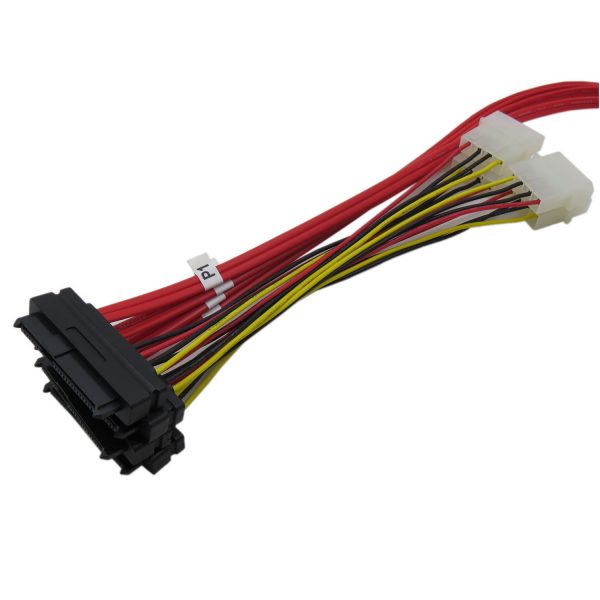

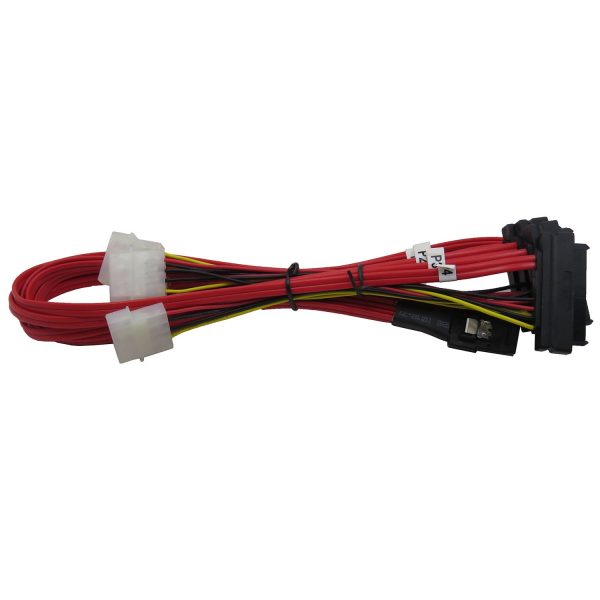

This 1 meter long cable uses 28 AWG wires and is intended for internal use. It has a single 36-pin SFF-8087 male mini-sas plug on one end and four 29-pin SFF-8482 female SAS plugs each with an attached 4-pin Molex 8981 female drive power plug on the other end. Guide to SAS connectors Type # of pins environment SFF-8087 36 internal SFF-8088 26 external SFF-8482 29 SFF-8484 32 SFF-8470 34 external (also sometimes internal)

Meets or exceeds existing SAS-2 standards Supports 3 Gbps data rate

future growth to 10 gbps

Dimensions: 50 cm (19.6 in) color: Red cable> 1 x mini-sas 36-pin (sff-8087)

4 x SAS 29-pin (sff-8482)

4 x Molex 4-pin connections>

package contains> SAS cable internal, Mini SAS 36-pin to SAS 29-pin
